人行通道闸机主板接线说明

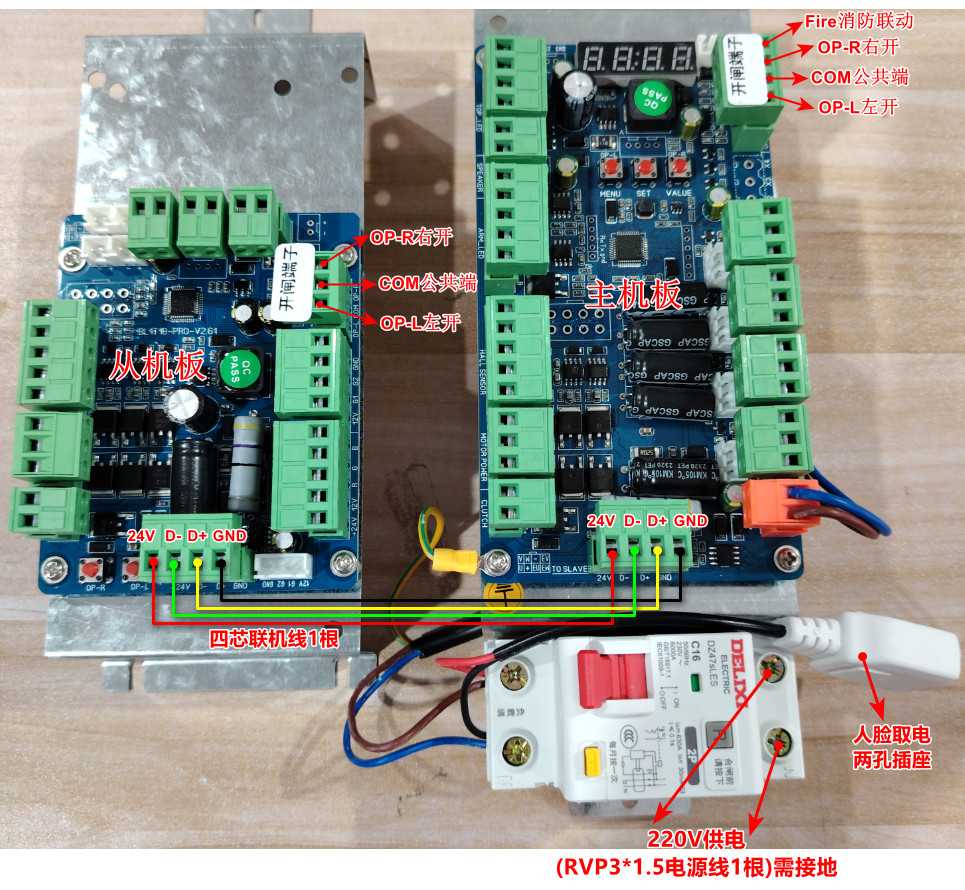

## XH数码管主板接线图（无接线端子排）

![](/media/202607/XH%E6%95%B0%E7%A0%81%E7%AE%A1%E4%B8%BB%E6%9D%BF%E6%8E%A5%E7%BA%BF%E5%9B%BE%EF%BC%88%E6%97%A0%E6%8E%A5%E7%BA%BF%E7%AB%AF%E5%AD%90%E6%8E%92%EF%BC%89_20260703173715587724.jpg#size=100%&align=left)

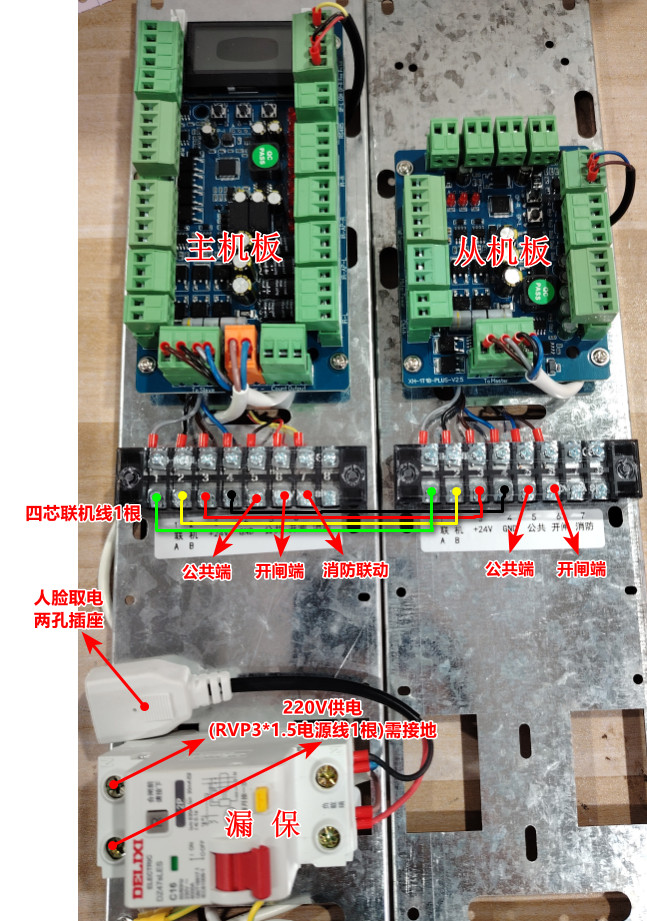

## 侧面安装闸机蓝色主板（液晶屏）接线图

![](/media/202607/%E4%BE%A7%E9%9D%A2%E5%AE%89%E8%A3%85%E9%97%B8%E6%9C%BA%E8%93%9D%E8%89%B2%E4%B8%BB%E6%9D%BF%EF%BC%88%E6%B6%B2%E6%99%B6%E5%B1%8F%EF%BC%89%E6%8E%A5%E7%BA%BF%E5%9B%BE_20260703173730795679.jpg#size=100%&align=left)

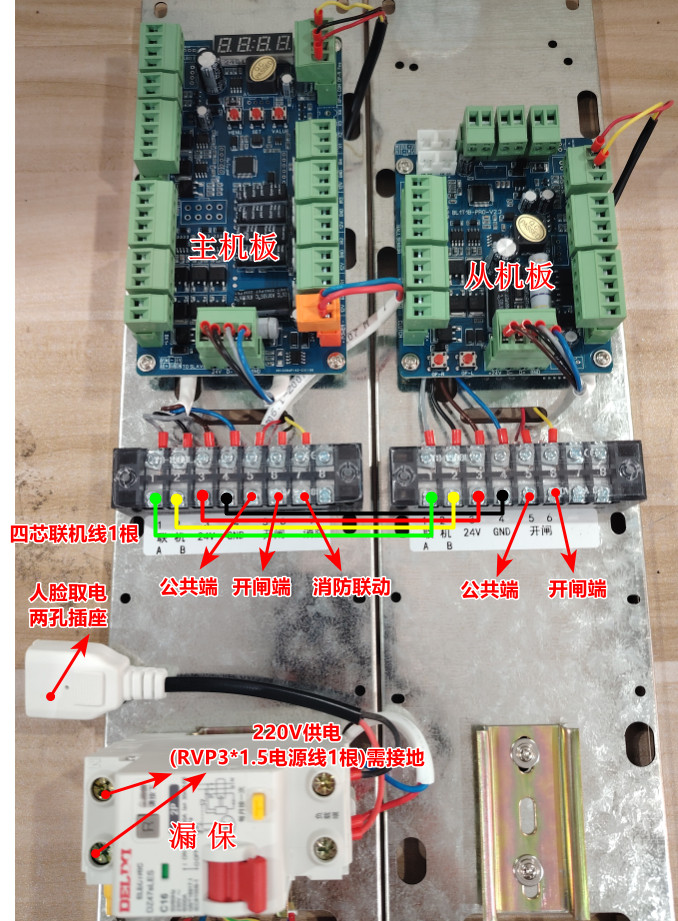

## 闸机蓝色主板接线图

![](/media/202607/%E9%97%B8%E6%9C%BA%E8%93%9D%E8%89%B2%E4%B8%BB%E6%9D%BF%E6%8E%A5%E7%BA%BF%E5%9B%BE_20260703173744990047.jpg#size=100%&align=left)

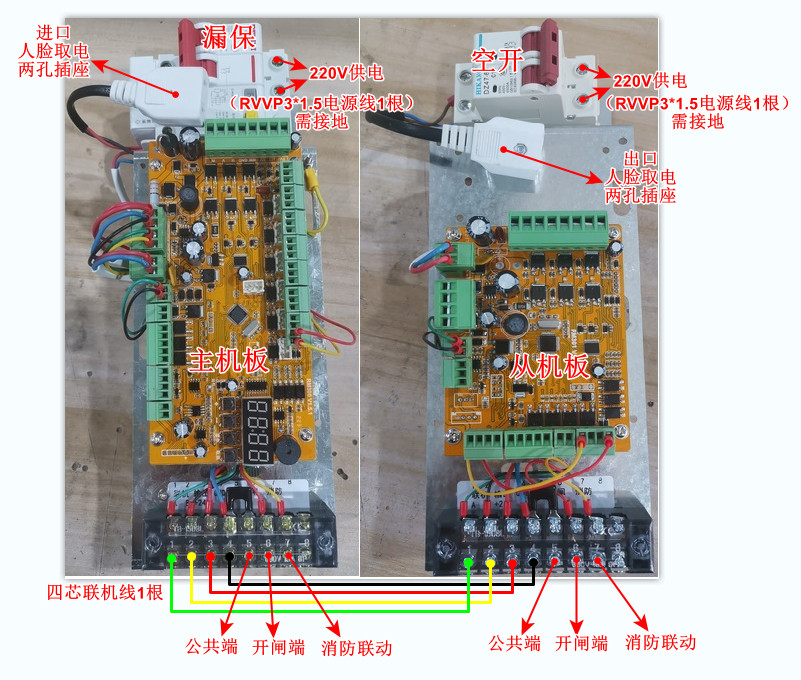

## 闸机主板接线说明（进出人脸供电）

![](/media/202607/%E9%97%B8%E6%9C%BA%E4%B8%BB%E6%9D%BF%E6%8E%A5%E7%BA%BF%E8%AF%B4%E6%98%8E%EF%BC%88%E8%BF%9B%E5%87%BA%E4%BA%BA%E8%84%B8%E4%BE%9B%E7%94%B5%EF%BC%89_20260703173821172013.jpg#size=100%&align=left)

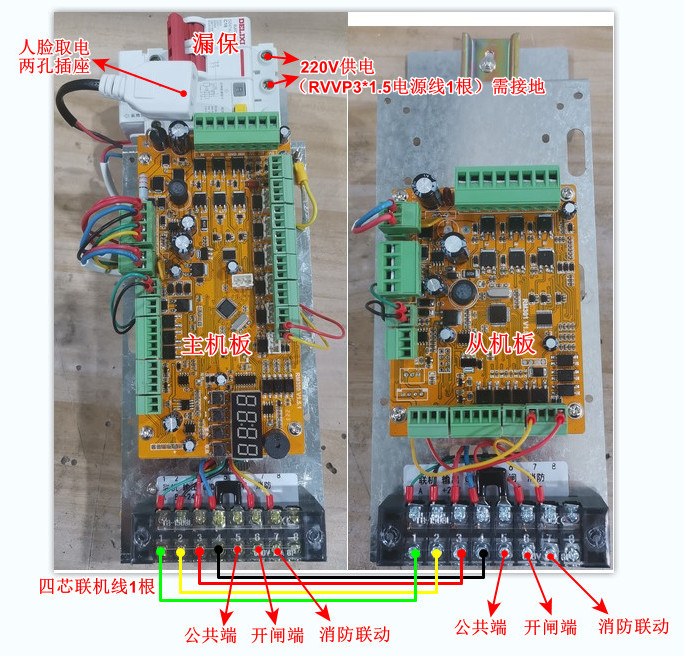

## 闸机主板接线说明1

![](/media/202607/%E9%97%B8%E6%9C%BA%E4%B8%BB%E6%9D%BF%E6%8E%A5%E7%BA%BF%E8%AF%B4%E6%98%8E1_20260703173917868702.jpg#size=100%&align=left)
