S15H 3S 机芯弹簧配置表

***

# S15H 3S 机芯弹簧配置表

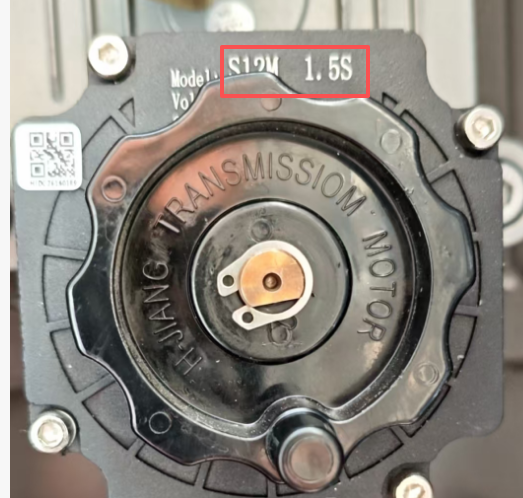

## 如图所示位置查看机芯规格[](https://ymzhdoc.szymzh.com/doc/2161/#h2-%E6%9F%A5%E7%9C%8B%E6%9C%BA%E8%8A%AF%E8%A7%84%E6%A0%BC%E5%8F%82%E6%95%B0)[](https://ymzhdoc.szymzh.com/doc/2162/#h2-%E5%A6%82%E5%9B%BE%E6%89%80%E7%A4%BA%E4%BD%8D%E7%BD%AE%E6%9F%A5%E7%9C%8B%E6%9C%BA%E8%8A%AF%E8%A7%84%E6%A0%BC)

## ![机芯规格参数](/media/202608/e75b873ed3cd4bc78afcbd2ce22b396e5820.png)

### 1. 无胶条直杆 (3M-6M) 3S机芯

| 门体长度 (L) | 弹簧配置 (φ) | 弹簧规格 (S) |
| :--- | :--- | :--- |
| L ≤ 3.0m | φ4.5 | 2.0S |
| 3.0m < L ≤ 3.5m | φ4.0 + φ4.0 | 2.0 - 2.3S |
| 3.5m < L ≤ 4.0m | φ4.0 + φ4.0 | 2.6 - 3.0S |
| 4.0m < L ≤ 4.5m | φ4.5 + φ4.5 | 3.4 - 3.6S |
| 4.5m < L ≤ 5.0m | φ4.5 + φ5.0 | 4.1 - 4.3S |
| 5.0m < L ≤ 5.5m | φ5.0 + φ5.0 | 4.5 - 5.0S |
| 5.5m < L ≤ 6.0m | φ5.0 + φ6.0 | 5.2 - 5.7S |

### 2. 带胶条直杆 (3M-6M) 3S机芯

| 门体长度 (L) | 弹簧配置 (φ) | 弹簧规格 (S) |
| :--- | :--- | :--- |
| L ≤ 3.0m | φ4.5 | 2.0S |
| 3.0m < L ≤ 3.5m | φ4.0 + φ4.0 | 2.0 - 2.3S |
| 3.5m < L ≤ 4.0m | φ4.0 + φ4.5 | 2.6 - 3.0S |
| 4.0m < L ≤ 4.5m | φ4.5 + φ5.0 | 3.4 - 3.6S |
| 4.5m < L ≤ 5.0m | φ5.0 + φ5.0 | 4.1 - 4.3S |
| 5.0m < L ≤ 5.5m | φ5.0 + φ5.0 | 4.5 - 5.0S |
| 5.5m < L ≤ 6.0m | φ5.0 + φ6.0 | 5.2 - 5.7S |

### 3. 伸缩带胶条直杆 (3M-6M) 3S机芯

| 门体长度 (L) | 弹簧配置 (φ) | 弹簧规格 (S) |
| :--- | :--- | :--- |
| 3.3m < L ≤ 3.5m | φ4.5 + φ4.5 | 2.4 - 2.7S |
| 3.5m < L ≤ 4.0m | φ4.5 + φ4.5 | 3.0 - 3.7S |
| 4.0m < L ≤ 4.5m | φ4.5 + φ5.0 | 3.6 - 4.3S |
| 4.5m < L ≤ 5.0m | φ4.5 + φ5.0 | 3.8 - 4.6S |
| 5.0m < L ≤ 5.5m | φ5.0 + φ5.0 | 4.7 - 5.3S |
| 5.5m < L ≤ 6.0m | φ5.0 + φ5.0 | 4.7 - 5.3S |

### 4. 伸缩直杆无胶条 (3M-6M) 3S机芯

> ⚠️ **注意**：伸缩杆重叠杆未切割。

| 门体长度 (L) | 弹簧配置 (φ) | 弹簧规格 (S) |
| :--- | :--- | :--- |
| 3.3m < L ≤ 3.5m | φ4.0 + φ4.5 | 2.4 - 2.7S |
| 3.5m < L ≤ 4.0m | φ4.5 + φ4.5 | 3.0 - 3.7S |
| 4.0m < L ≤ 4.5m | φ4.5 + φ4.5 | 3.6 - 4.3S |
| 4.5m < L ≤ 5.0m | φ4.5 + φ4.5 | 3.8 - 4.6S |
| 5.0m < L ≤ 5.5m | φ4.5 + φ5.0 | 4.7 - 5.3S |
| 5.5m < L ≤ 6.0m | φ4.5 + φ5.0 | 4.7 - 5.3S |

### 5. 直杆带胶条带灯带 (3M-6M) 3S机芯

| 门体长度 (L) | 弹簧配置 (φ) | 弹簧规格 (S) |
| :--- | :--- | :--- |
| L ≤ 3.0m | φ4.0 + φ4.5 | 2.0 - 2.7S |
| 3.0m < L ≤ 3.5m | φ4.5 + φ4.5 | 2.5 - 3.0S |
| 3.5m < L ≤ 4.0m | φ4.5 + φ5.0 | 3.2 - 3.7S |
| 4.0m < L ≤ 4.5m | φ5.0 + φ5.0 | 3.7 - 4.0S |
| 4.5m < L ≤ 5.0m | φ5.0 + φ6.0 | 4.1 - 4.4S |
| 5.0m < L ≤ 5.5m | φ6.0 + φ6.0 | 4.6 - 5.3S |
| 5.5m < L ≤ 6.0m | φ6.0 + φ6.5 | 5.2 - 5.6S |

### 6. 直杆无胶条带灯带 (3M-6M) 3S机芯

| 门体长度 (L) | 弹簧配置 (φ) | 弹簧规格 (S) |
| :--- | :--- | :--- |
| L ≤ 3.0m | φ4.0 + φ4.5 | 2.0 - 2.4S |
| 3.0m < L ≤ 3.5m | φ4.5 + φ4.5 | 2.5 - 3.0S |
| 3.5m < L ≤ 4.0m | φ4.5 + φ5.0 | 3.2 - 3.7S |
| 4.0m < L ≤ 4.5m | φ5.0 + φ5.0 | 3.7 - 4.2S |
| 4.5m < L ≤ 5.0m | φ5.0 + φ6.0 | 4.0 - 4.4S |
| 5.0m < L ≤ 5.5m | φ5.0 + φ6.0 | 4.6 - 5.3S |
| 5.5m < L ≤ 6.0m | φ6.0 + φ6.0 | 5.2 - 5.6S |

### 7. 井字形栅栏杆 两栏 (3M-6M) 3S机芯

| 门体长度 (L) | 弹簧配置 (φ) | 弹簧规格 (S) |
| :--- | :--- | :--- |
| L ≤ 3.0m | φ4.5 + φ4.5 | 3.0 - 3.3S |
| 3.0m < L ≤ 3.5m | φ5.0 + φ5.0 | 3.2 - 3.5S |
| 3.5m < L ≤ 4.0m | φ5.0 + φ6.0 | 3.4 - 4.0S |
| 4.0m < L ≤ 4.5m | φ6.0 + φ6.0 | 4.3 - 5.2S |
| 4.5m < L ≤ 5.0m | φ5.0 + φ6.0 | 6.0 - 7.2S |
| 5.0m < L ≤ 5.5m | φ6.0 + φ6.5 | 7.0 - 8.2S |
| 5.5m < L ≤ 6.0m | φ7.0 + φ7.0 | 8.0 - 9.6S |

> ⚠️ **重要提示**：长度为 **5.5m < L ≤ 6.0m** 的井字形栅栏杆，需使用 **20H3.0S** 机芯。
>

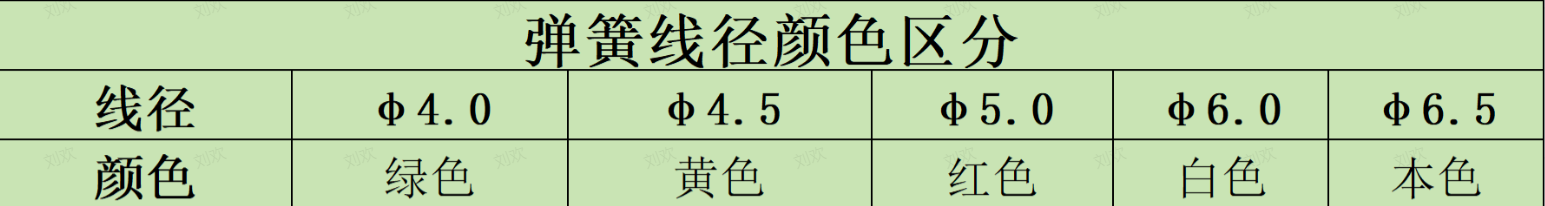

![](/media/202608/851639fdb2454f81aa867f939ab931b09093.png)
