S12L 1.5S机芯弹簧配置表

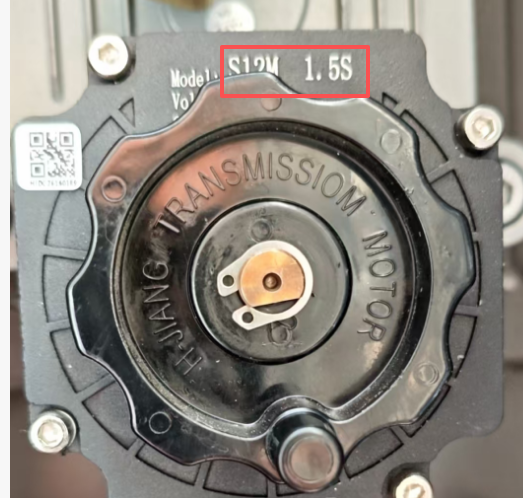

## 如图所示位置查看机芯规格[](https://ymzhdoc.szymzh.com/doc/2161/#h2-%E6%9F%A5%E7%9C%8B%E6%9C%BA%E8%8A%AF%E8%A7%84%E6%A0%BC%E5%8F%82%E6%95%B0)[](https://ymzhdoc.szymzh.com/doc/2162/#h2-%E5%A6%82%E5%9B%BE%E6%89%80%E7%A4%BA%E4%BD%8D%E7%BD%AE%E6%9F%A5%E7%9C%8B%E6%9C%BA%E8%8A%AF%E8%A7%84%E6%A0%BC)

## ![机芯规格参数](/media/202608/dc2df5496eec4a1bb3256021bf2afb0d2270.png)[](https://ymzhdoc.szymzh.com/doc/2162/#h2-%E6%9C%BA%E8%8A%AF%E8%A7%84%E6%A0%BC%E5%8F%82%E6%95%B0)

# S12L 1.5S 机芯弹簧配置表

| 杆型 | 杆长范围 | 弹簧规格 | 推荐速度 |
|:---|:---|:---|:---|
| **泡沫杆（3–4m，1.5S 机芯）**<br>注：标配单根弹簧，不含胶条 | L ≤ 3.0m | φ4.0 | 1.5s |
| | 3.0m < L ≤ 3.5m | φ4.5 | 1.5–1.8s |
| | 3.5m < L ≤ 4.0m | φ4.5 | 2.0–3.0s |
| **无胶条直杆（3–4m，1.5S 机芯）**<br>注：标配单根弹簧 | L ≤ 3.0m | φ4.5 | 2.0s |
| | 3.0m < L ≤ 3.5m | φ4.5 | 2.0–2.3s |
| | 3.5m < L ≤ 4.0m | φ4.5 | 2.6–3.0s |
| **带胶条直杆（3–6m，1.5S 机芯）**<br>注：带灯款弹簧需重新适配 | L ≤ 3.0m | φ4.5 | 2.0s |
| | 3.0m < L ≤ 3.5m | φ4.0 + φ4.0 | 2.0–2.3s |
| | 3.5m < L ≤ 4.0m | φ4.0 + φ4.5 | 2.6–3.0s |
| **伸缩带胶条直杆（3–4m，1.5S 机芯）** | 3.3m < L ≤ 3.5m | φ4.5 + φ4.5 | 2.4–2.7s |
| | 3.5m < L ≤ 4.0m | φ4.5 + φ4.5 | 3.0–3.7s |
| **伸缩直杆无胶条（3–4m，1.5S 机芯）**<br>注：伸缩杆重叠部分未切割 | 3.3m < L ≤ 3.5m | φ4.0 + φ4.5 | 2.4–2.7s |
| | 3.5m < L ≤ 4.0m | φ4.5 + φ4.5 | 3.0–3.7s |
| **直杆带胶条带灯带（3–4m，1.5S 机芯）** | L ≤ 3.0m | φ4.0 + φ4.5 | 2.0–2.7s |
| | 3.0m < L ≤ 3.5m | φ4.5 + φ4.5 | 2.5–3.0s |
| | 3.5m < L ≤ 4.0m | φ4.5 + φ5.0 | 3.2–3.7s |
| **直杆无胶条带灯带（3–4m，1.5S 机芯）** | L ≤ 3.0m | φ4.0 + φ4.5 | 2.0–2.4s |
| | 3.0m < L ≤ 3.5m | φ4.5 + φ4.5 | 2.5–3.0s |
| | 3.5m < L ≤ 4.0m | φ4.5 + φ5.0 | 3.2–3.7s |

---

![](/media/202608/829574b82b67420680dff7cbf005b98b9898.png)
